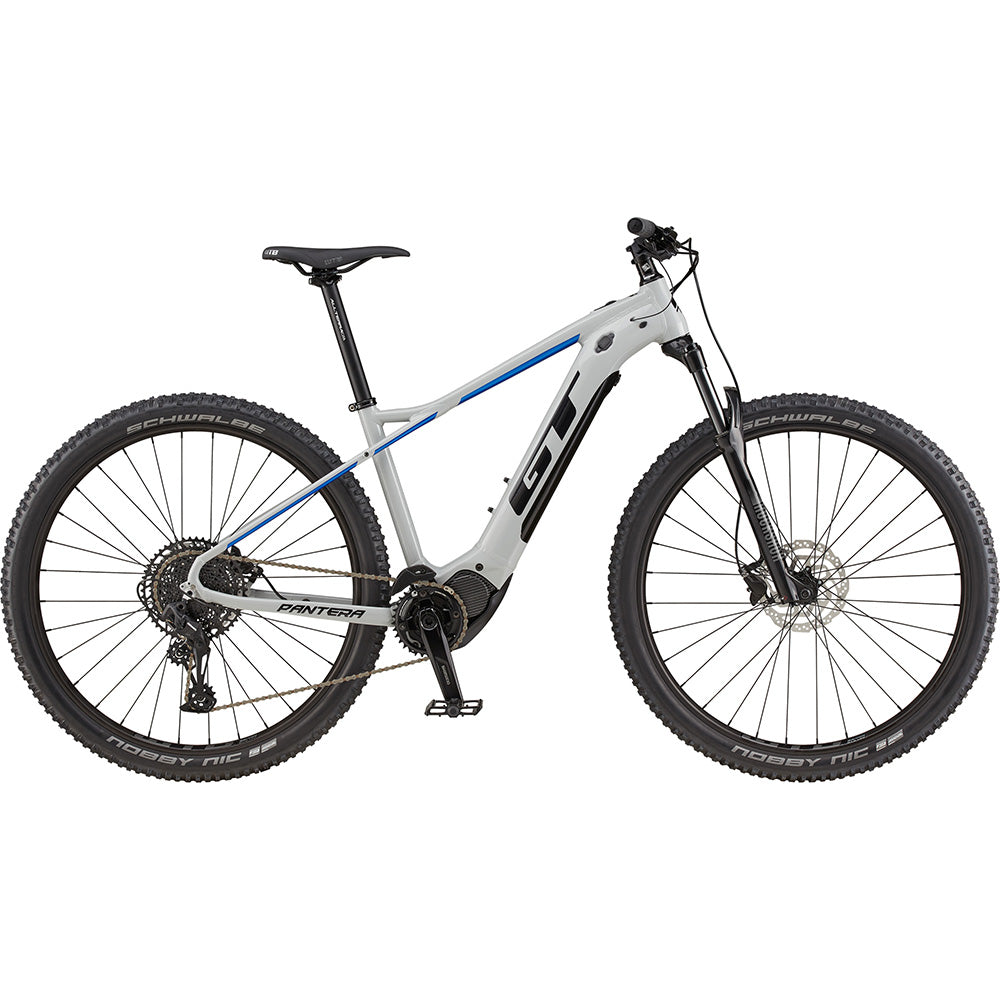

GT ePantera 2020 - 2023 Frame Parts

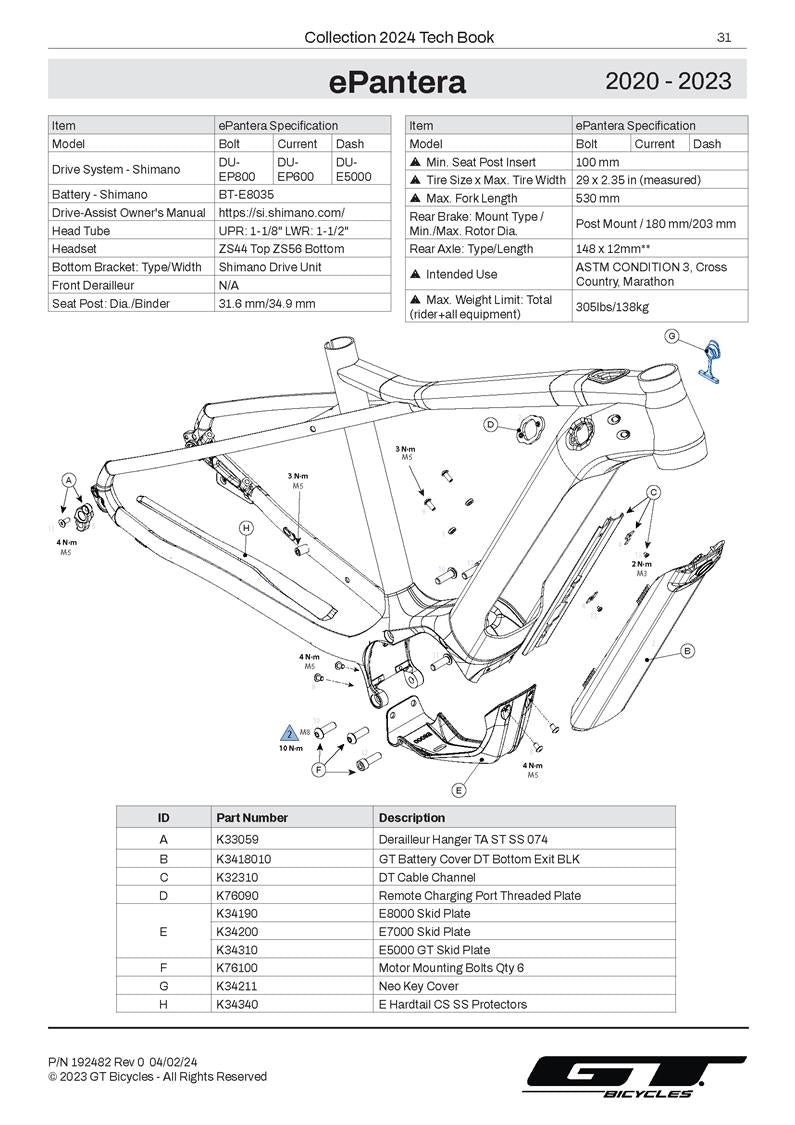

GT ePANTERA 2020 - 2023 FRAME PARTS

SPECIFICATIONS

• Drive System - Shimano
• Battery - BT-8035
• Head Tube - UPR: 1-1/8” LWR: 1-1/2”
• Headset - ZS44 Top ZS56 Bottom
• Bottom Bracket: Type / Width - Shimano Drive Unit
• Front Derailleur - N/A
• Seat Post: Dia./Binder - 31.6mm / 34.9mm
• Min. Seat Post Insert - 100 mm
• Tire Size x Max. Width - 29 in x 2.35 in
• Max. Fork Length - 530 mm
• Rear Brake Mount / Type - Post Mount / 180mm / 203mm
• Rear Axle: Type / Length - 148x12mm
• Max. Weight Limit: Total - 138kg
